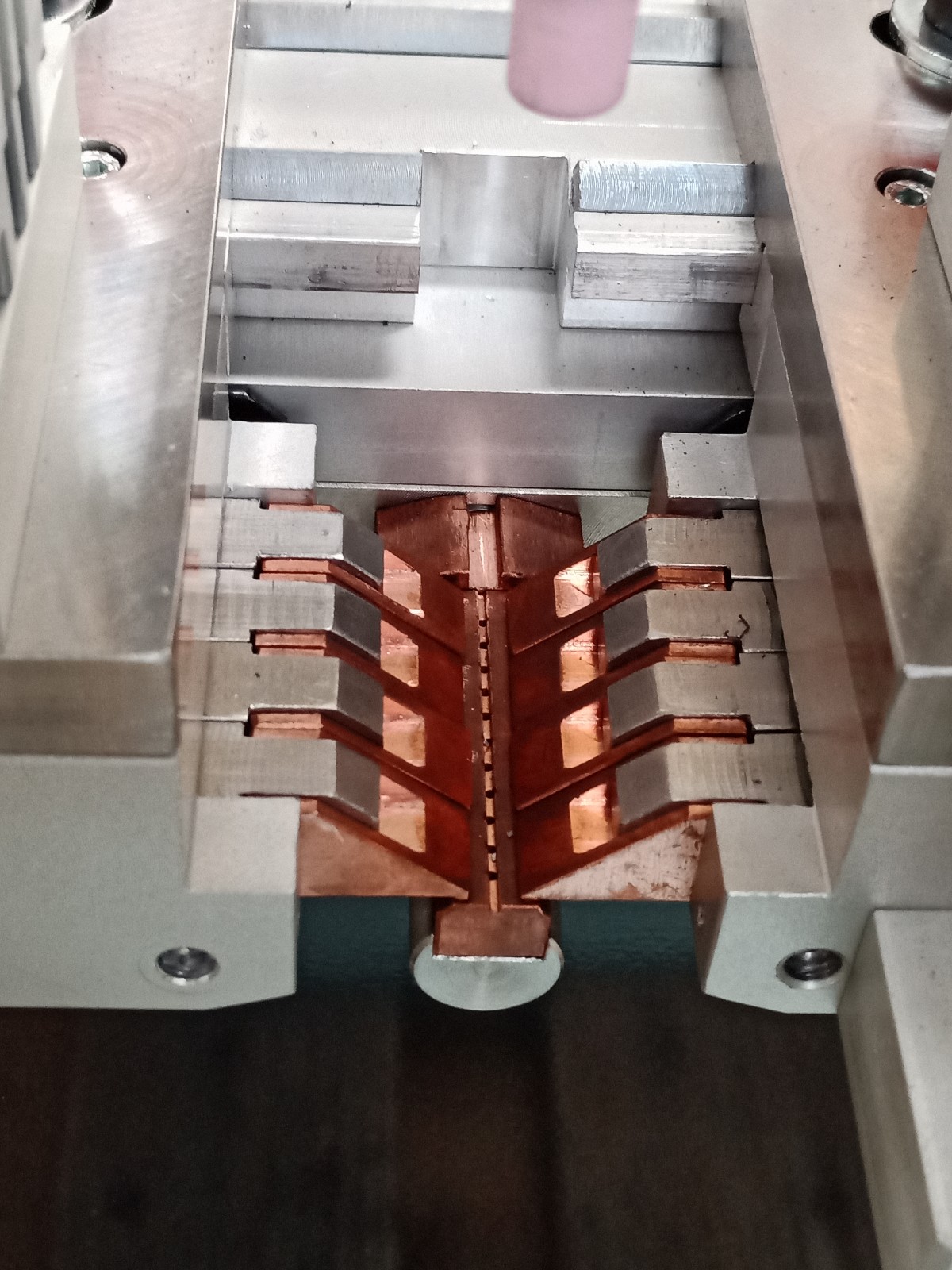

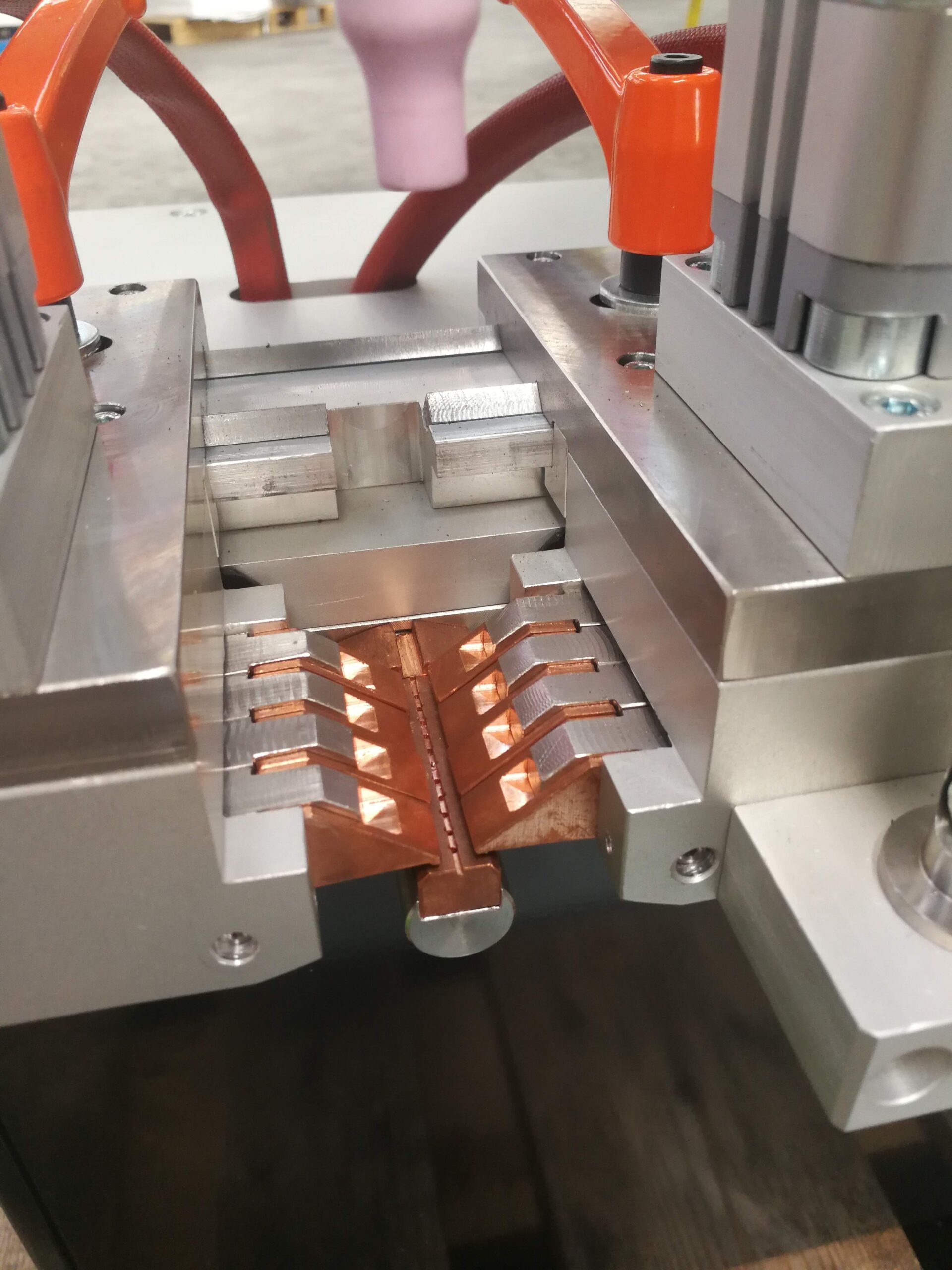

Provided of tight and very precise pneumatic clamp fingers, to lock vessel walls and flat plates till 0.2 mm. as well.
Micrometric adjustment of fingers in-between distance is made by high precision slides.

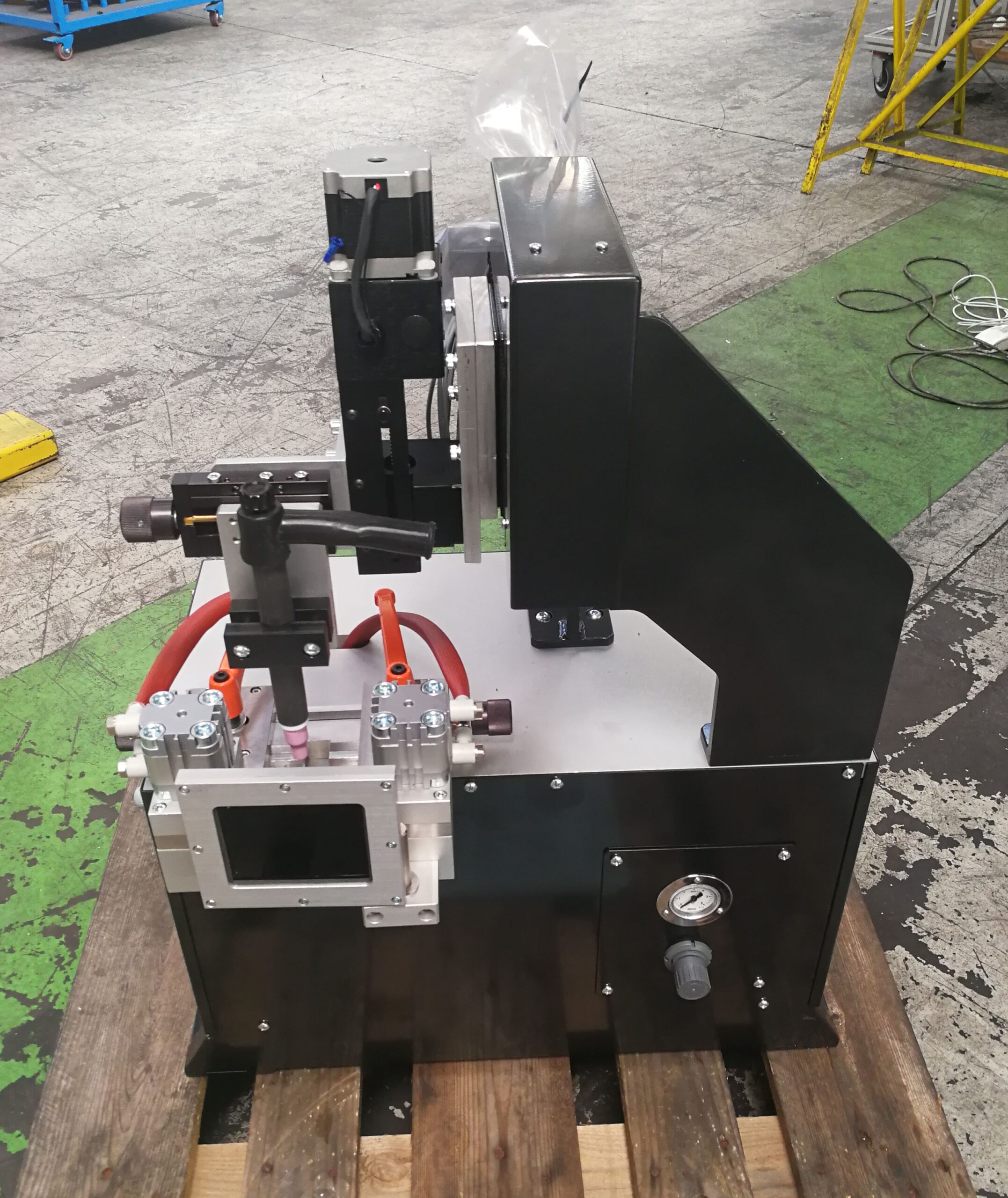

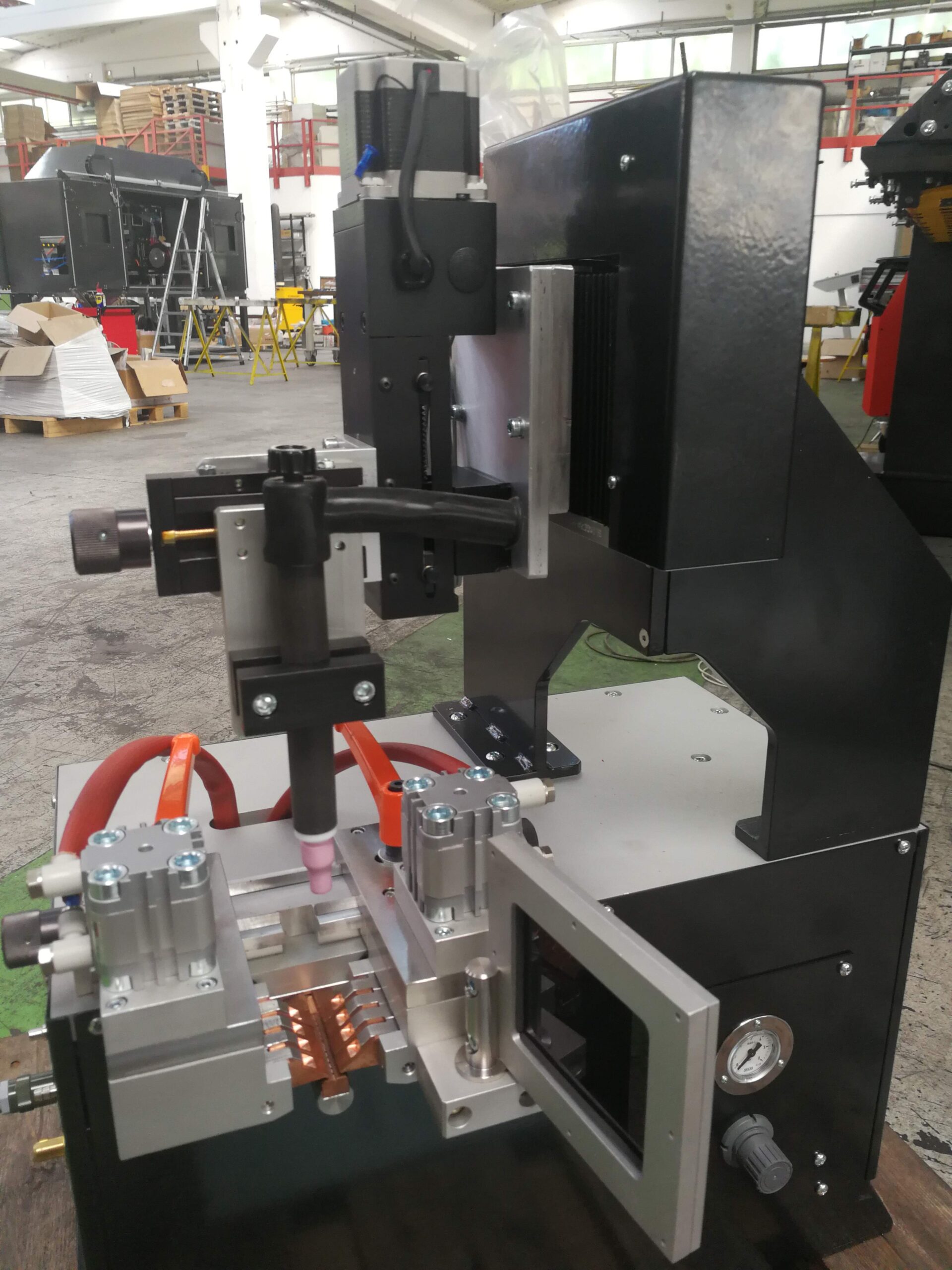

Torch longitudinal traversing is managed by MM MINI 180 motorized by DC motor with encoder and driven by ball screw on ball linear guides.
Torch up/down stroke by JD PNEUMO 80 pneumatic slide.
Work cycle stepped by PLC with 3.5” soft touch screen, which allows the set-up of :
• Start point welding.
• Longitudinal stroke in mm. welding
• Mm/min. speed
• Delayed start in sec.
• Delayed torch up stroke in sec.
Provided of tight and very precise pneumatic clamp fingers, to lock vessel walls and flat plates till 0.2 mm. as well.
