There are four different available standard versions :

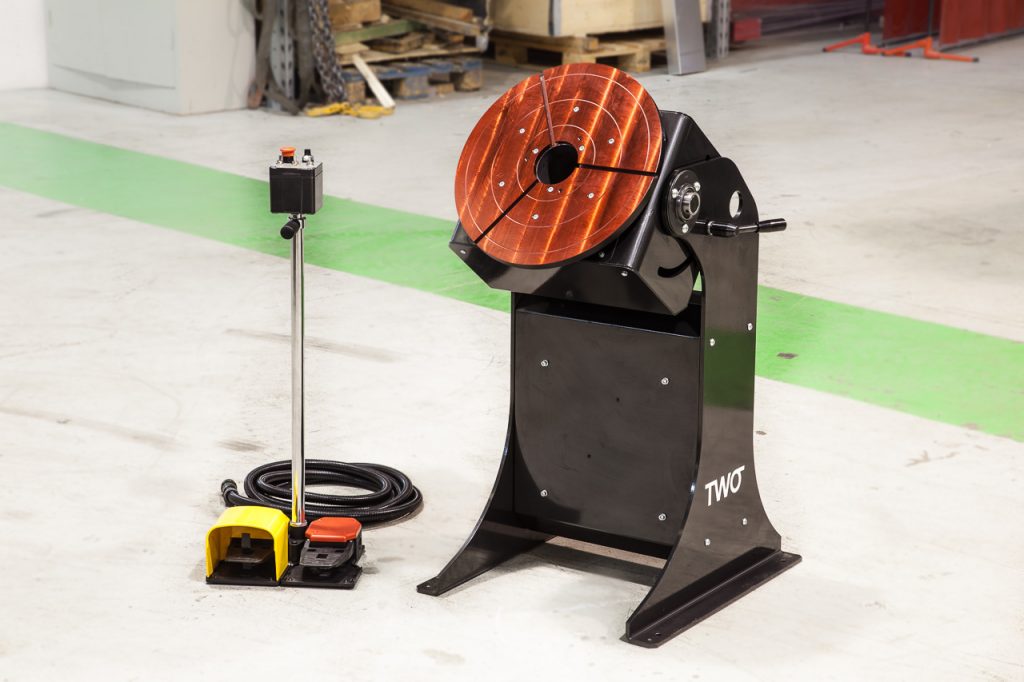

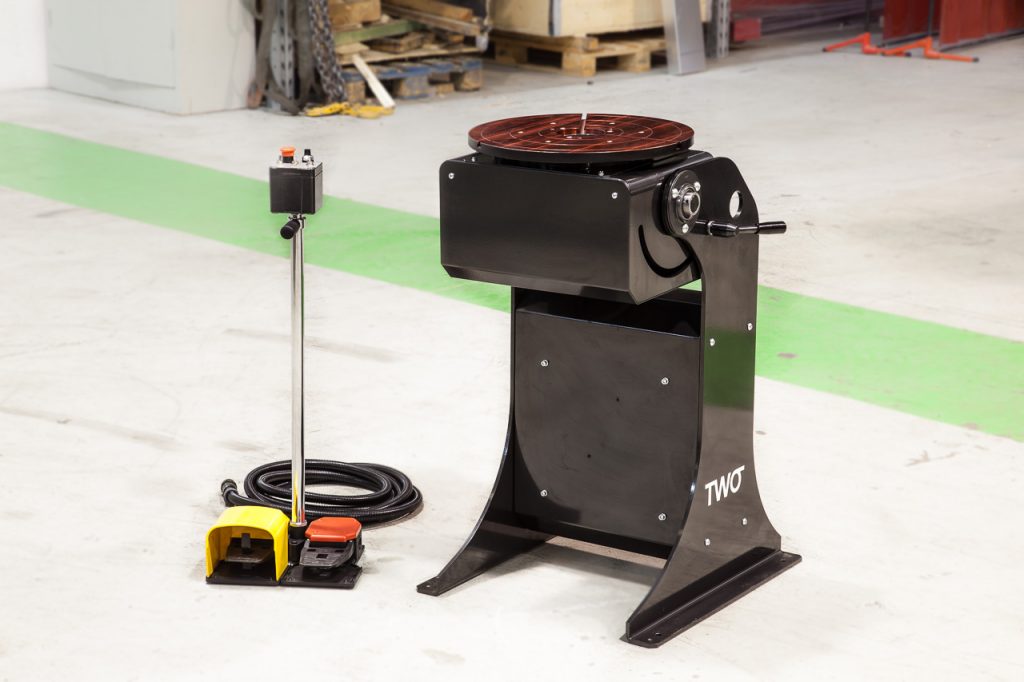

TWO BASE with AC motor and Rollo1-CD foot remote control

TWO BASE DC with DC motor + tako and Rollo1-CD foot remote control

TWO PLC with AC motor and PLC to manage the welding automatic cycle

TWO PLC with DC motor + tako and PLC to manage the welding automatic cycle

TWO rotary table positioner can be equipped by a large range of accessories/tools, such as :

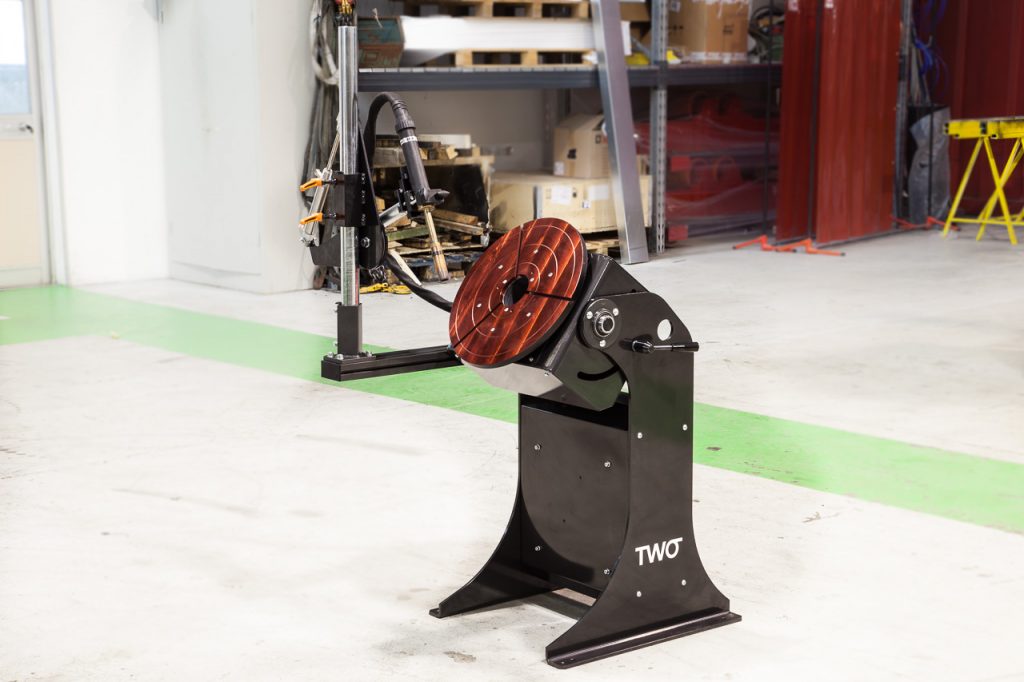

TWO PLC with TWO ARM Pneumo pneumatic arm, in this case the PLC sequences the uplift/downlift arm in the welding complete cycle, that includes the overlap and the delayed rotation of the arc as well.

TWO PLC with TWO ARM MAN fix arm and tilting tailstock support with TWO SWAN turntable.

In such version, the max rotating Ø is 400 mm, with a max item height of approx. 400 mm

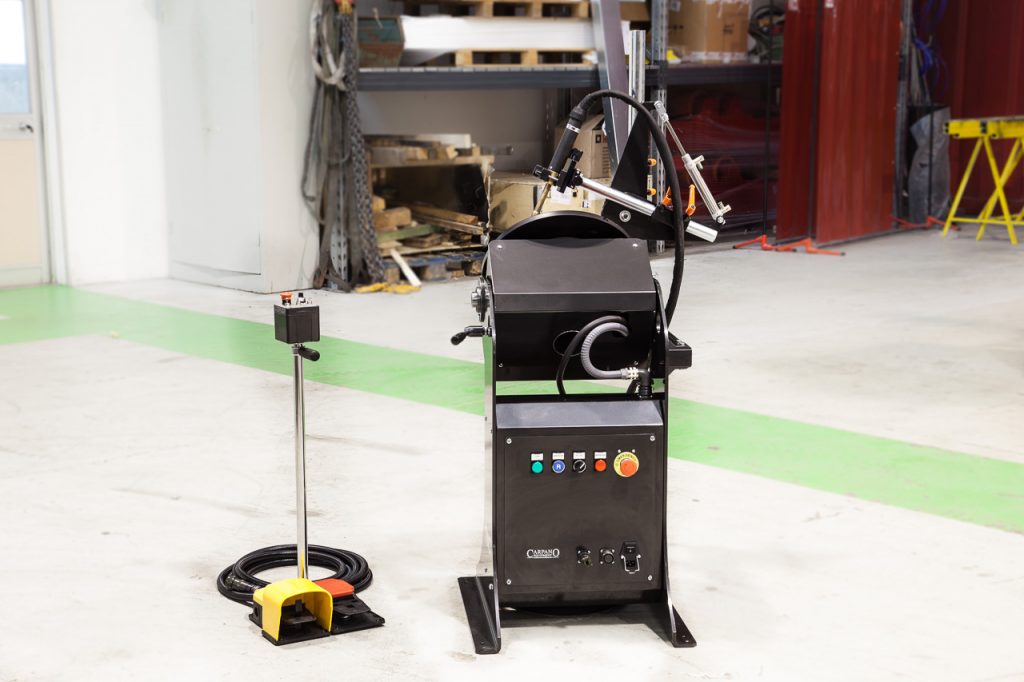

TWO welding turntable, fully automated for multi-layer cold-wire TIG circular welding :
PLC with 7” touch-sensitive screen panel
Vertical slide for AVC control
Horizontal slide to check the swinging
Cold wire managed by PLC
PLC with welding torch JOB recall
Possibility to enter at least 200 different working programs, for each program it is possible to set the step number, and for each step it is possible to set :- Ø of the item in mm :
– Delayed rotation
– Overlap in mm
– Arc Voltage in Volt
– Swinging parameters : width, speed, center, left-center-right pause- Welding torch Job, with bus connection
