Description

AP GANTRY LT, SUITABLE FOR CARRYING TWO MIG OR SAW HEADS, but without power sources on board:

Max. span: 4 m
Max. height of horizontal boom: 2 m
Max. stroke of diving booms: 600 mm

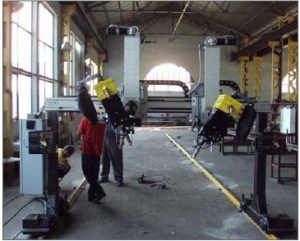

The picture shows the gantry used for box beams welding, each head equipped with IG tactile joint tracking system.
The welding gantries move on Burback n° 1 rails, driven by two brushless motors with encoders and electronic synchronization. The base is provided of automatic safety anti-collision bumpers.

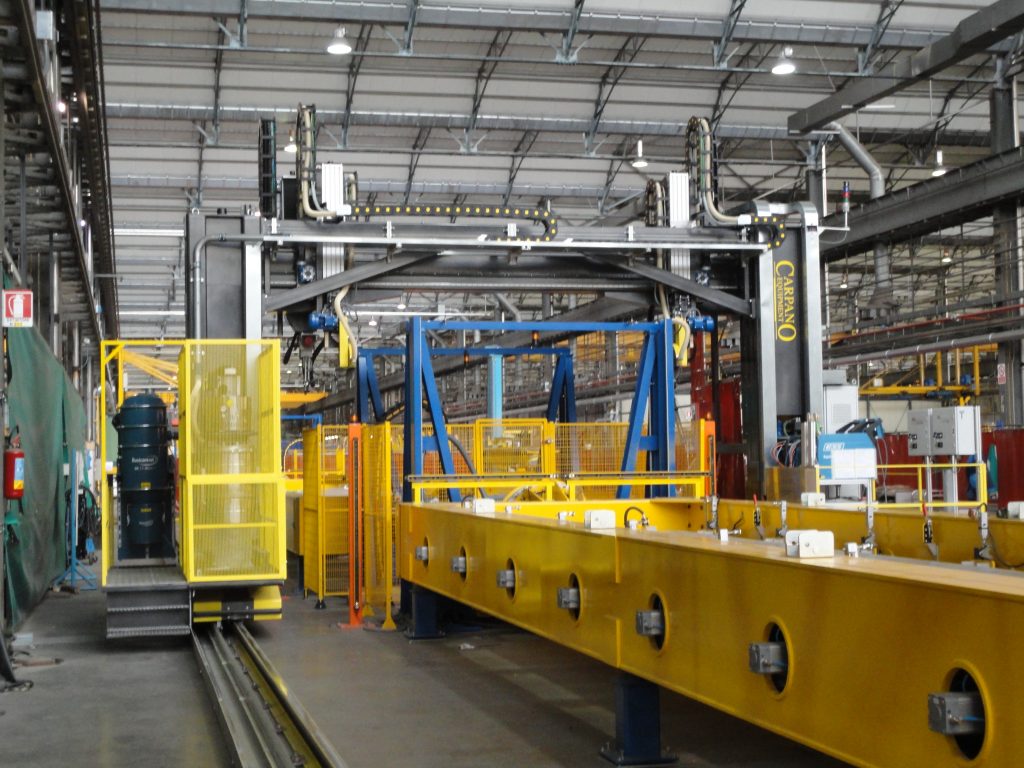

AP GANTRY MD EQUIPPED WITH MIG HEADS FOR WELDING U PROFILES ON FLAT PANELS.
Both heads are provided of IG tactile joint tracking systems.
The gantry moves on Burback n° 2 rails, driven by two brushless motors with encoders and electronic synchronization.
The base is provided of automatic safety anti-collision bumper and features platforms on both sides for housing:
• The operator with general control panel.
• Two power sources.
• Fumes aspirator.
• Two wire drums.
In order to optimize their distance from torches, MIG wire drives are installed on the opposite faces of side beam carriages

Portale di saldatura automatica per la saldatura di pannelli in alluminio.
Due basi motorizzate sincronizzate per il trasporto di: generatori, aspiratore fumo di saldatura, 2 fusti di filo, aspiratore polveri da spazzolatura, sede di lavoro per operatore.
Traversa orizzontale elevabile 4 tuffanti con corsa 1200 mm, 2 per la saldatura e 2 per la spazzolatura.
Su ogni testa di saldatura polso con assi robotici, seguigiunto laser e telecamere di controllo.

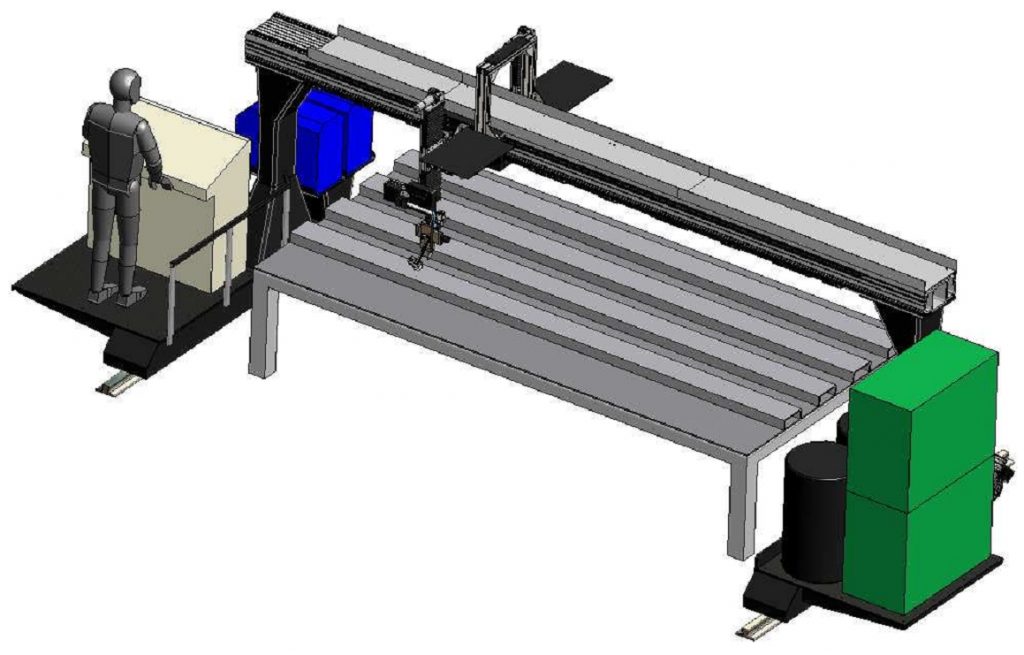

AP GANTRY HD FOR MIG WELDING OF ALUMINIUM PANELS :
The welding gantries base is driven by synchronized motors and it is provided of platforms on both sides for housing the operator control panel, two power sources, fumes and brush dust aspirators, two wire drums.
The horizontal boom is height adjustable and carries 4 diving booms, stroke 1.2 m, two for welding and two for brushing. Each welding head is handled by robot-like 2-axis wrists, is provided of laser joint tracking and of video systems.
