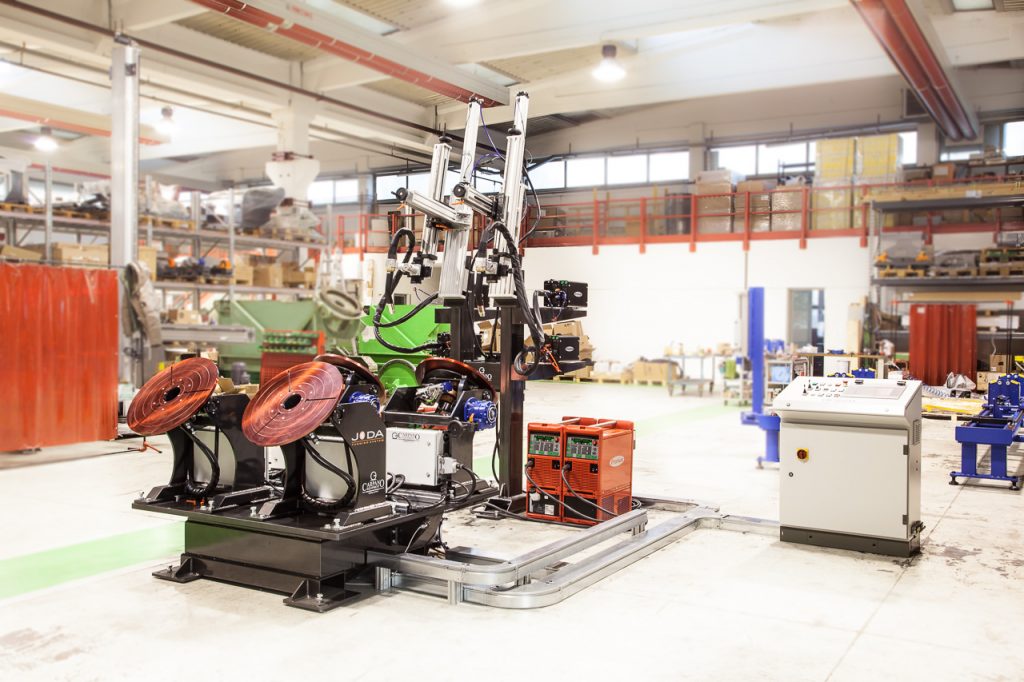

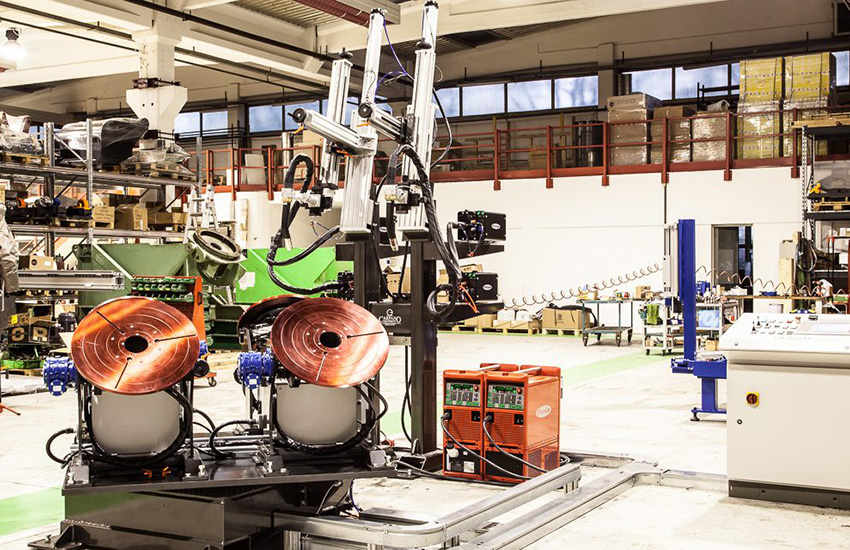

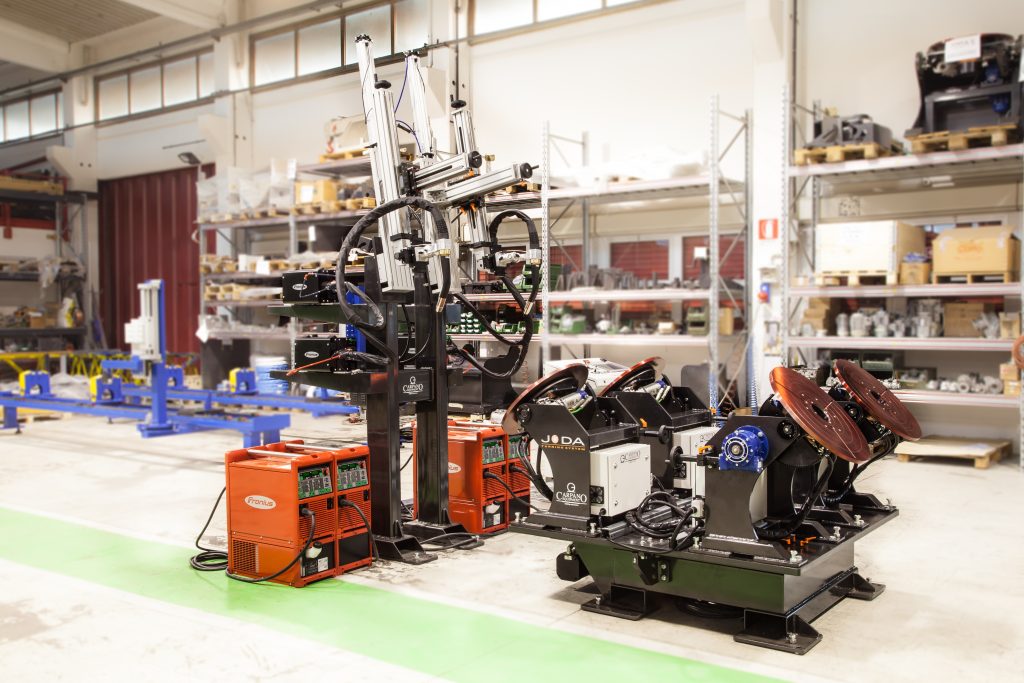

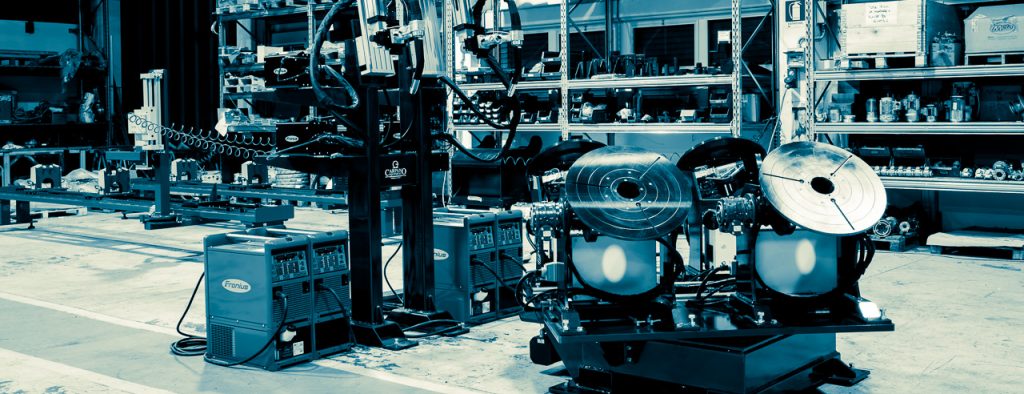

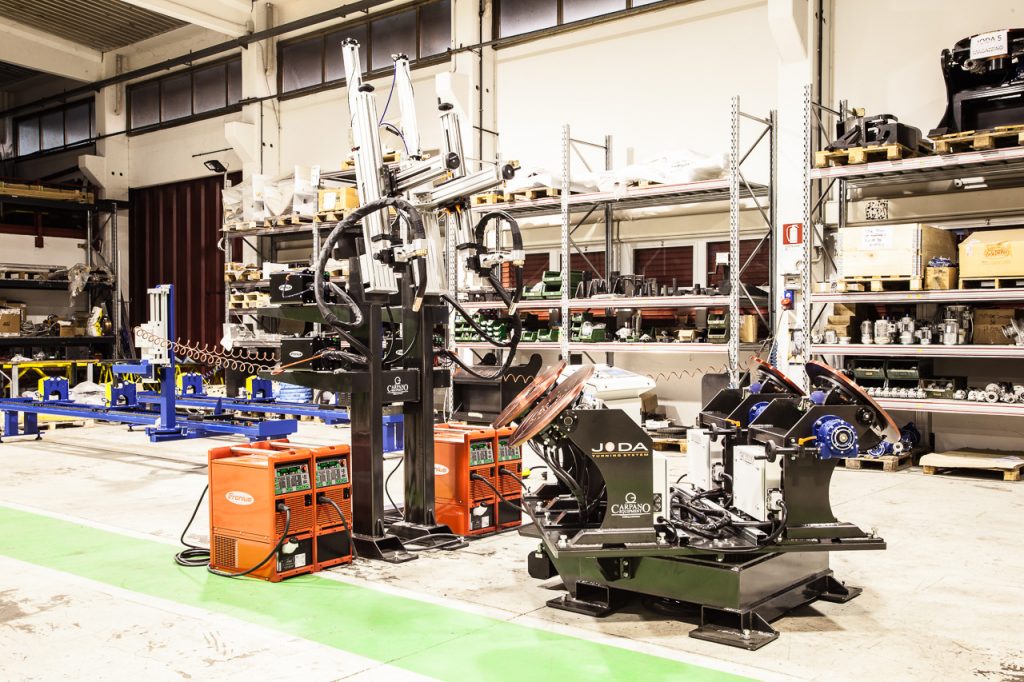

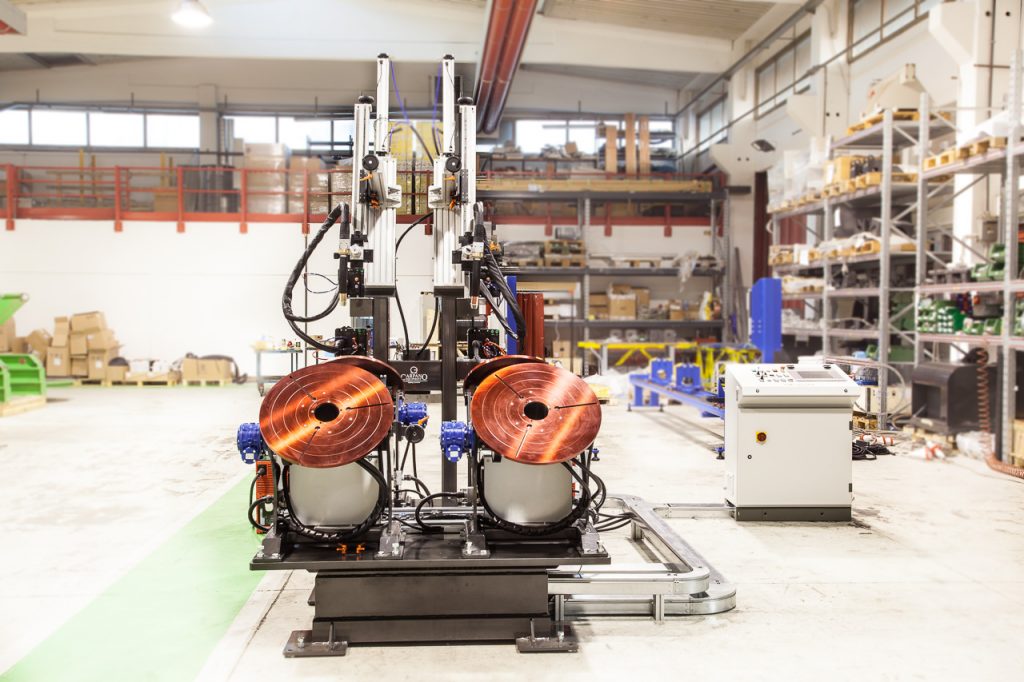

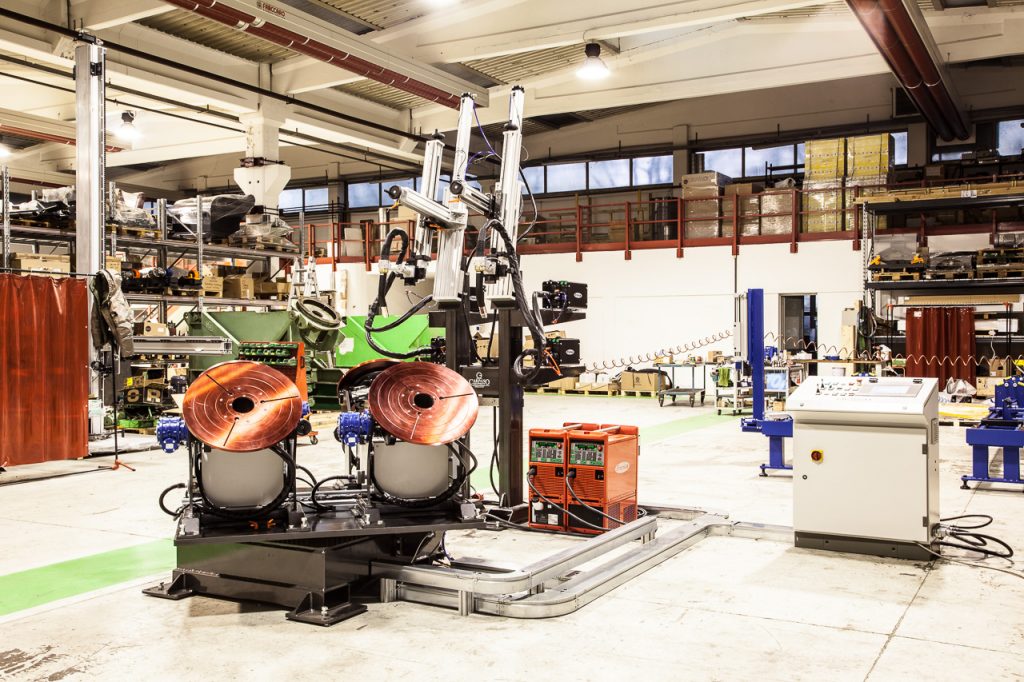

The machine has two stations: while two rotary tables are welding, the other two are loading/unloading.
Each table has a load capacity of 200 kg, and a 180° rotation takes about 6 seconds.

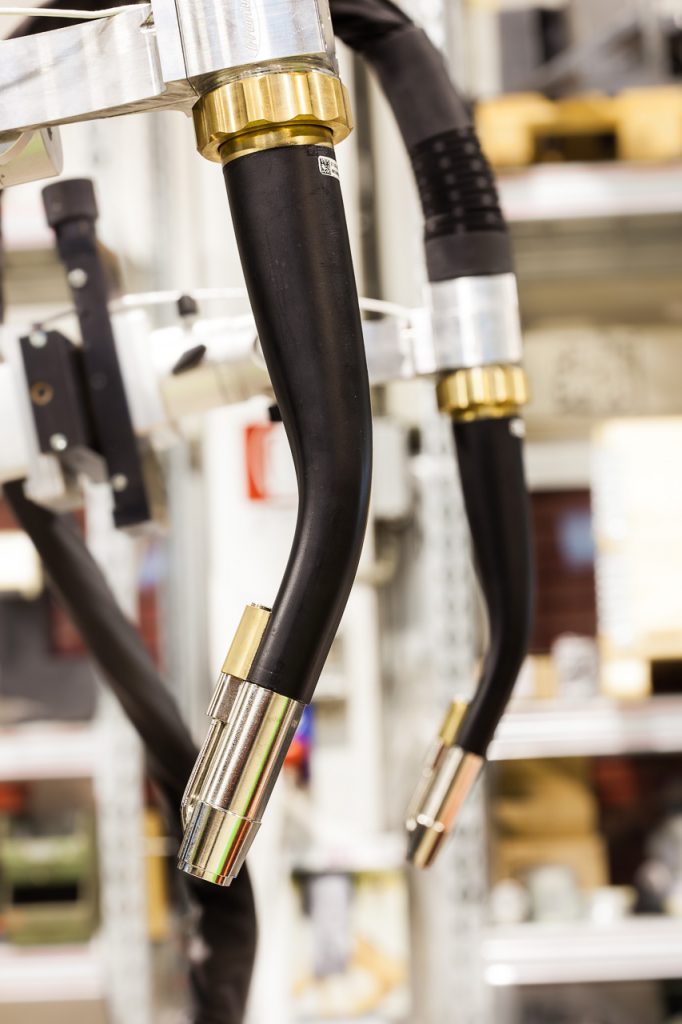

The two MIG welding heads are in tandem, increasing the size of the weld bead and speed of execution.
The entire process is managed by a PLC with a 10″ touch panel that allows the storage of at least 200 different work programs and includes the management of the four welding generators, via CAN OPEN connection.
The entire process is managed by a PLC with a 10” touch panel that allows the storage of at least 200 different work programs and includes the management of the 4 welding generators, in CAN OPEN connection.
